Recently (i.e., at the time of this writing since 2015~2016 onwards) new methods to perform sequence labelling tasks based on neural networks started to be proposed/published, I will try in this blog post to do a quick recap of some of these new methods, understanding their architectures and pointing out what each technique brought new or different to the already knew methods.

Introduction

Several NLP tasks involve classifying a sequence, a classical example is part-of-speech tagging, in this scenario, each \(x_{i}\) describes a word and each \(y_{i}\) the associated part-of-speech of the word \(x_{i}\) (e.g.: noun, verb, adjective, etc.).

Another example is named-entity recognition, in which, again, each \(x_{i}\) describes a word and \(y_{i}\) is a semantic label associated to that word (e.g.: person, location, organization, event, etc.).

Linear Sequence Models

Classical approaches (i.e., prior to the neural networks revolution in NLP) to deal with these tasks involved methods which made independent assumptions, that is, the tag decision for each word depends only on the surrounding words and not on previous classified words.

Then methods that take into consideration the sequence structure i.e., the tag given to the previous classified word(s) is considered when deciding the tag to give to the following word.

You can read more about these last methods here:

But recently, methods based on neural networks started to succeed and are nowadays state-of-the-art in mostly NLP sequence prediction tasks.

Most of these methods combine not one simple neural network but several neural networks working in tandem, i.e., combining different architectures. One important architecture common to all recent methods is a recurrent neural network (RNN).

An RNN introduces the connection between the previous hidden state and the current hidden state, and therefore a recurrent layer weight parameter. This recurrent layer is designed to store past information. When reading through a sequence of words, the input and output layers have:

Input layer:
- same dimensionality as feature size
Output layer:
- represents a probability distribution over labels at time \(t\)
- same dimensionality as the size of labels.

However, in most proposed techniques, the RNN is replaced by a Long short-term memory (LSTM), where hidden layer updates are replaced by purpose-built memory cells. As a result, they may be better at finding and exploiting long-range dependencies in sequential data.

Another architecture that is combined with LSTMs in the works described in this post is Convolutional Neural Networks.

Neural Sequence Labelling Models

The first ever work to try to use try to LSTMs for the task of Named Entity Recognition was published back in 2003:

Named Entity Recognition with Long Short-Term Memory (James Hammerton 2003)

but lack of computational power led to small and not expressive enough models, consequently with performance results far behind other proposed methods at that time.

I will describe four recent papers which propose neural network architectures to perform NLP sequence labelling tasks such as NER, chunking, or POS-tagging, I will focus only on the architectures proposed and detail them, and leave out of the datasets or scores.

At the time of writing, there are already newly proposed methods, published in 2017 and 2018, which are currently state-of-the-art, but I will leave these for another blog post, for now, I just wanted to dissect and understand something from the ones listed above :-)

Bidirectional LSTM-CRF Models for Sequence Tagging (2015)

Architecture

This was, to the best of my knowledge, the first work to apply a bidirectional-LSTM-CRF architecture for sequence tagging. The idea is to use two LSTMs, one reading each word in a sentence from beginning to end and another reading the same but from end to beginning, producing for each word, a vector representation made from both the un-folded LSTM (i.e., forward and backward) read up to that word. There is this intuition that the vector for each word will take into account the words read/seen before, in both directions.

There is no explicit mention in the paper of how the vectors from each LSTM are combined to produce a single vector for each word, I will assume that they are just concatenated.

This bidirectional-LSTM architecture is then combined with a CRF layer at the top. A Conditional Random Field (CRF) layer has a state transition matrix as parameters, which can be used to efficiently use past attributed tags in predicting the current tag.

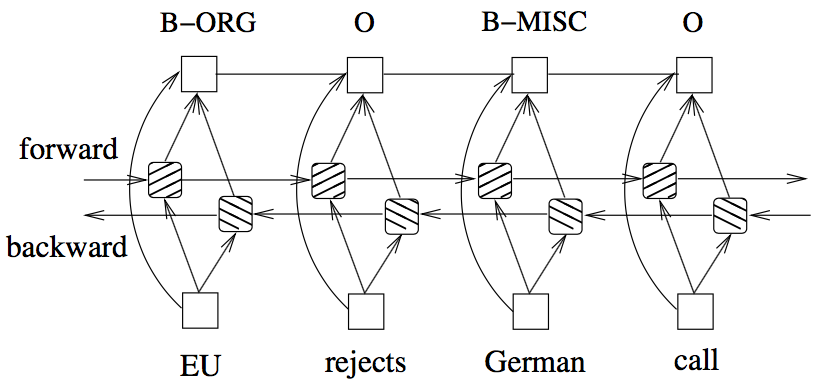

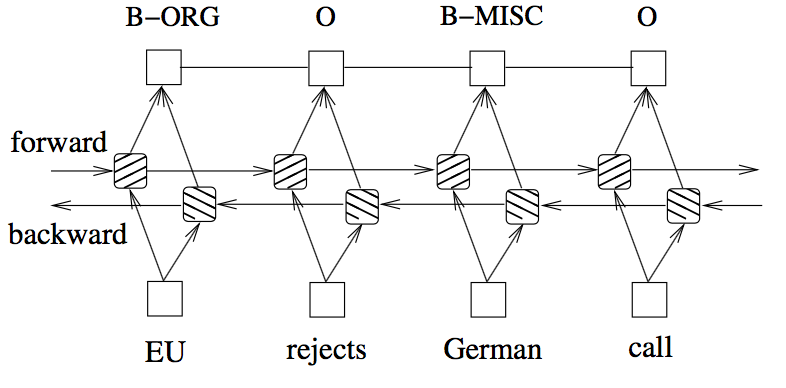

A bi-LSTM-CRF model for NER.
(Image taken from Huang et. al 2015)

Features and Embeddings

Word embeddings, generate from each state of the LSTM, are combined with hand-crafted features:

spelling, e.g.: capitalization, punctuation, word patterns, etc.
context, e.g: uni-, bi- and tri-gram features

The embeddings used are those produced by Collobert et al., 2011 which has 130K vocabulary size and each word corresponds to a 50-dimensional embedding vector.

Features connection tricks:

The input for the model includes both word, spelling and context features, however, the authors suggest direct connecting the hand-crafted features to the output layer (i.e, CRF) which accelerates training and result in very similar tagging accuracy, when comparing without direct connections. That is, in my understanding, the vector representing the hand-crafted features is passed directly to the CRF and is not passed through the bidirectional-LSTM

A bi-LSTM-CRF model with Maximum Entropy features.
(Image taken from Huang et. al 2015)

Summary

In essence, I guess one can see this architecture as using the output of the bidirectional-LSTM, vector representations for each word in a sentence, together with a vector of features derived from spelling and context hand-crafted rules, these vectors are concatenated and passed to a CRF layer.

Named Entity Recognition with Bidirectional LSTM-CNNs (2016)

Architecture

The authors propose a hybrid model combining bidirectional-LSTMs with a Convolutional Neural Network (CNN), the latter learns both character- and word-level features. So, this makes use of words-embeddings, additional hand-crafted word features, and CNN-extracted character-level features. All these features, for each word, are fed into a bidirectional LSTM.

A bidirectional-LSTMs with CNNs.
(Image taken from Chiu and Nichols 2016)

The output vector of each LSTM (i.e., forward and backward) at each time step is decoded by a linear layer and a log-softmax layer into log probabilities for each tag category, and These two vectors are then added together.

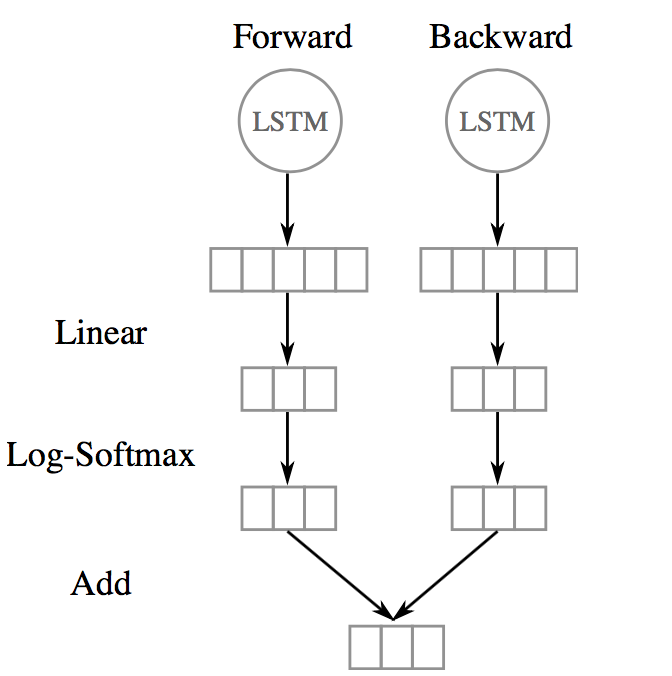

Output Layer.
(Image taken from Chiu and Nichols 2016)

Character-level features are induced by a CNN architecture, which was successfully applied to Spanish and Portuguese NER (Santos et al., 2015) and German POS-tagging (Labeau et al., 2015). For each word, a convolution and a max layer are applied to extract a new feature vector from the per-character feature vectors such as character embeddings and character type.

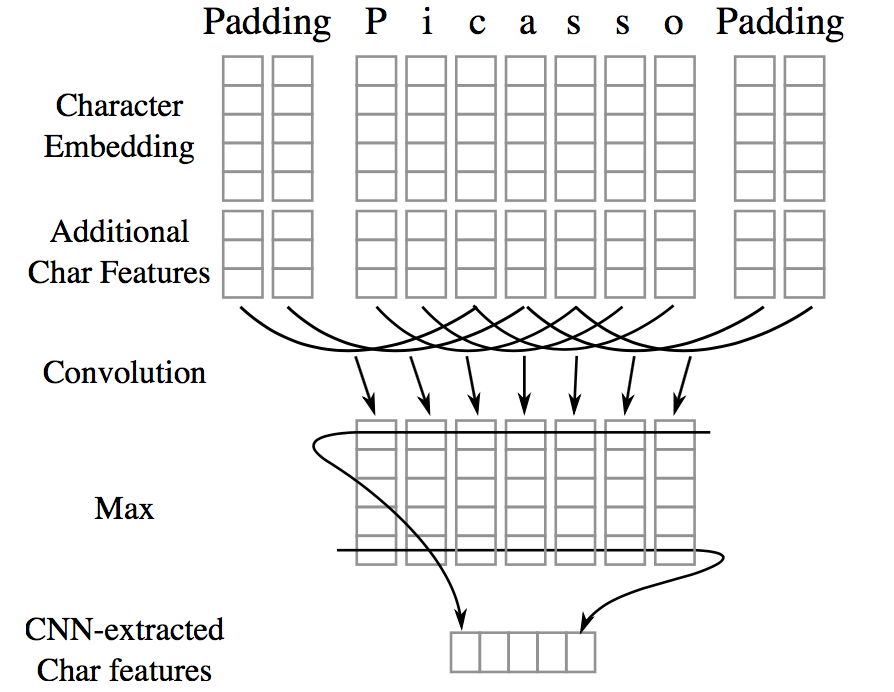

Char-Embeddings architecture.
(Image taken from Chiu and Nichols 2016)

Features and Embeddings

Word Embeddings: 50-dimensional word embeddings (Collobert et al. 2011), all words are lower-cased, embeddings are allowed to be modified during training.

Character Embeddings: randomly initialized a lookup table with values drawn from a uniform distribution with range [−0.5,0.5] to output a character embedding of 25 dimensions. Two special tokens are added: PADDING and UNKNOWN.

Additional Char Features A lookup table was used to output a 4-dimensional vector representing the type of the character (upper case, lower case, punctuation, other).

Additional Word Features: each words is tagged as allCaps, upperInitial, lowercase, mixedCaps, noinfo.

Lexicons: partial lexicon matches using a list of known named entities from DBpedia. The list is then used to perform \(n\)-gram matches against the words. A match is successful when the \(n\)-gram matches the prefix or suffix of an entry and is at least half the length of the entry.

Summary

The authors also explore several features, some hand-crafted:

word embeddings
word shape features
character-level features (extracted with a CNN)
lexical features

All these features are then concatenated, passed through a bi-LSTM and each time step is decoded by a linear layer and a log-softmax layer into log probabilities for each tag category. The model also learns a tag transition matrix, and at inference time the Viterbi algorithm selects the sequence that maximizes the score of all possible tag sequences.

Implementations

https://github.com/kamalkraj/Named-Entity-Recognition-with-Bidirectional-LSTM-CNNs

Neural Architectures for Named Entity Recognition (2016)

Architecture

This was, to the best of my knowledge, the first work on NER to completely drop hand-crafted features, i.e., they use no language-specific resources or features beyond a small amount of supervised training data and unlabeled corpora.

Two architectures are proposed:

bidirectional LSTMs + Conditional Random Fields (CRF)
generating labels segments using a transition-based approach inspired by shift-reduce parsers

I will just focus on the first model, which follows a similar architecture as the other models presented in this post. I personally like this model mostly because of its simplicity.

As in the previous models, two LSTMs are used to generate a word representation by concatenating its left and right context. These are two distinct LSTMs with different parameters. The tagging decisions are modelled jointly using a CRF layer (Lafferty et al., 2001).

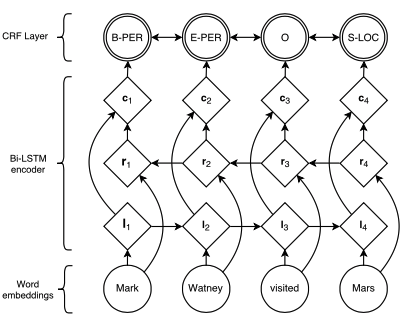

Model Architecture.
(Image taken from Lample et. al 2016)

Embeddings

The authors generate word embeddings from both representations of the characters of the word and from the contexts where the word occurs.

The rationale behind this idea is that many languages have orthographic or morphological evidence that a word or sequence of words is a named entity or not, so they use character-level embeddings to try to capture this evidence. Secondly, named entities appear in somewhat regular contexts in large corpora, therefore they use embeddings learned from a large corpus that are sensitive to word order.

Character Embeddings

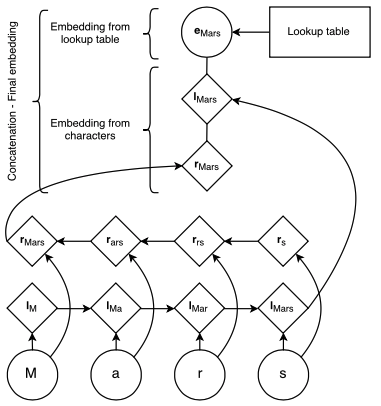

Character-Embeddings Architecture.
(Image taken from Lample et. al 2016)

A character lookup table is initialized randomly containing an embedding for every character. The character embeddings corresponding to every character in a word are given in direct and reverse order to a bidirectional LSTM. The embedding for a word derived from its characters is the concatenation of its forward and backward representations from the bidirectional LSTM. The hidden dimension of the forward and backward character LSTMs are 25 each.

Word Embeddings

This character-level representation is then concatenated with a word-level representation from pre-trained word embeddings. Embeddings are pre-trained using skip-n-gram (Ling et al., 2015), a variation of skip-gram that accounts for word order.

These embeddings are fine-tuned during training, and the authors claim that using pre-trained over randomly initialized ones results in performance improvements.

They also mention that they apply a dropout mask to the final embedding layer just before the input to the bidirectional LSTM and observe a significant improvement in the model’s performance after using dropout.

Summary

This model is relatively simple, the authors use no hand-crafted features, just embeddings. The word embeddings are the concatenation of two vectors, a vector made of character embeddings using two LSTMs, for each character in a word, and a vector corresponding to word embeddings trained on external data.

The embeddings for word each word in a sentence are then passed through a forward and backward LSTM, and the output for each word is then fed into a CRF layer.

Implementations

End-to-end Sequence Labelling via Bi-directional LSTM-CNNs-CRF (2016)

Architecture

This system is very similar to the previous one. The authors use Convolutional Neural Networks (CNN) to encode character-level information of a word into its character-level representation. Then combine character- and word-level representations and feed them into bidirectional LSTM to model contextual information of each word. Finally, the output vectors of BLSTM are fed to the CRF layer to jointly decode the best label sequence.

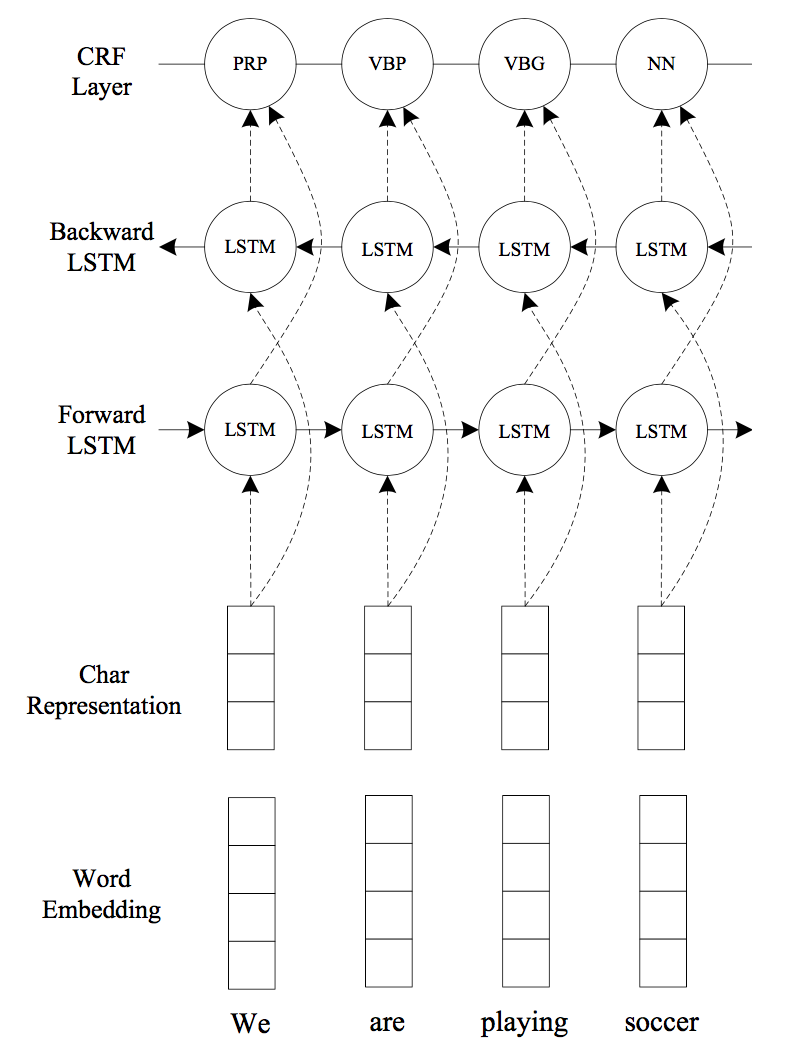

Model Architecture.
(Image taken from Ma and Hovy 2016)

Embeddings

Character Embeddings

The CNN is similar to the one in Chiu and Nichols (2015), the second system presented, except that they use only character embeddings as the inputs to CNN, without any character type features. A dropout layer is applied before character embeddings are input to CNN.

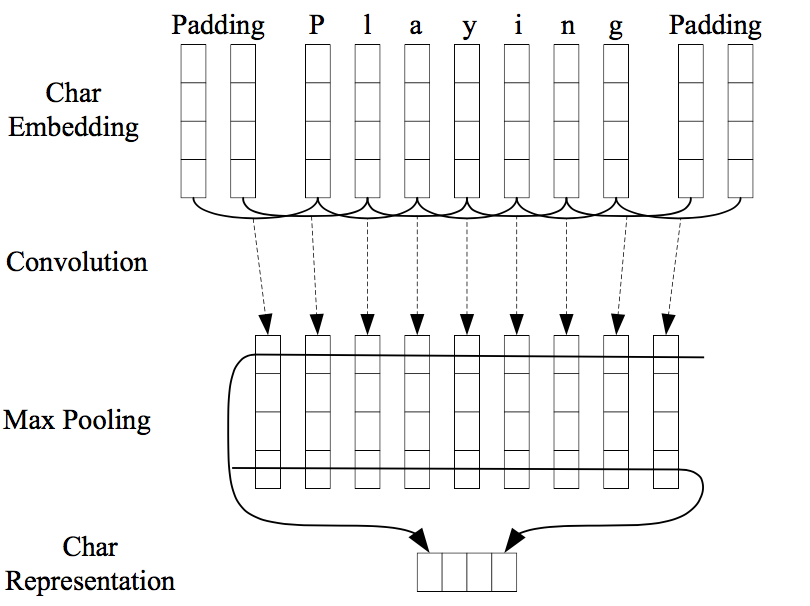

Character-embeddings Architecture.
(Image taken from Ma and Hovy 2016)

Word Embeddings

The word embeddings are the publicly available GloVe 100-dimensional embeddings trained on 6 billion words from Wikipedia and web text.

Summary

This model follows basically the same architecture as the one presented before, the only architectural change is the fact that they use CNN to generate word-level char-embeddings instead of an LSTM.

Implementations

https://github.com/achernodub/bilstm-cnn-crf-tagger

Comparative Summary

I would say the main lessons learned from reading these papers are:

Use two LSTMs (forward and backward)
CRF on the top/final layer to model tag transitions
Final embeddings are a combination of word- and character embeddings

In the following table, I try to summarize the main characteristics of each of the models

	Features	Architecture Resume	Structured Tagging	Embeddings
(Huang et. al 2015)	Yes	bi-LSTM output vectors + features vectors connected to CRF	CRF	Collobert et al. 2011 pre-trained 50-dimensions
(Chiu and Nichols 2016)	Yes	word embeddings + features vector input to a bi-LSTM the output at each time step is decoded by a linear layer and a log-softmax layer into log-probabilities for each tag category	Sentence-level log-likelihood	- Collobert et al. 2011 - char-level embeddings extracted with a CNN
(Lample et. al 2016)	No	chars and word embeddings input for the bi-LSTM output vectors are fed to the CRF layer to jointly decode the best label sequence	CRF	- char-level embeddings extracted with a bi-LSTM - pre-trained word embeddings with skip-n-gram
(Ma and Hovy 2016)	No	chars and word embeddings input for the bi-LSTM output vectors are fed to the CRF layer to jointly decode the best label sequence	CRF	- char embeddings extracted with a CNN - word embeddings: GloVe 100-dimensions

References

Extra: Why a Conditional Random Field at the top?

Having independent classification decisions is limiting when there are strong dependencies across output labels since you decide the label for a word independently from the previously given tags.

For sequence labelling or general structured prediction tasks, it is beneficial to consider the correlations between labels in neighbourhoods and jointly decode the best chain of labels for a given input sentence:

NER is one such task, since interpretable sequences of tags have constraints, e.g.: I-PER cannot follow B-LOC that would be impossible to model with independence assumptions;
Another example is in POS tagging, an adjective is more likely to be followed by a noun than a verb;

The idea of using a CRF at the top is to model tagging decisions jointly, that is the probability of a given label to a word depends on the features associated with that word (i.e., final word embedding) and the assigned tag of the word before.

This means that the CRF layer could add constraints to the final predicted labels ensuring they are valid. The constraints are learned by the CRF layer automatically based on the annotated samples during the training process.

Emission score matrix

The output of the LSTM is given as input to the CRF layer, that is, a matrix \(\textrm{P}\) with the scores of the LSTM of size \(n \times k\), where \(n\) is the number of words in the sentence and \(k\) is the possible number of labels that each word can have, \(\textrm{P}_{i,j}\) is the score of the \(j^{th}\) tag of the \(i^{th}\) word in the sentence. In the image below the matrix would be the concatenation of the yellow blocks coming out of each LSTM.

CRF Input Matrix
(Image taken from https://createmomo.github.io/)

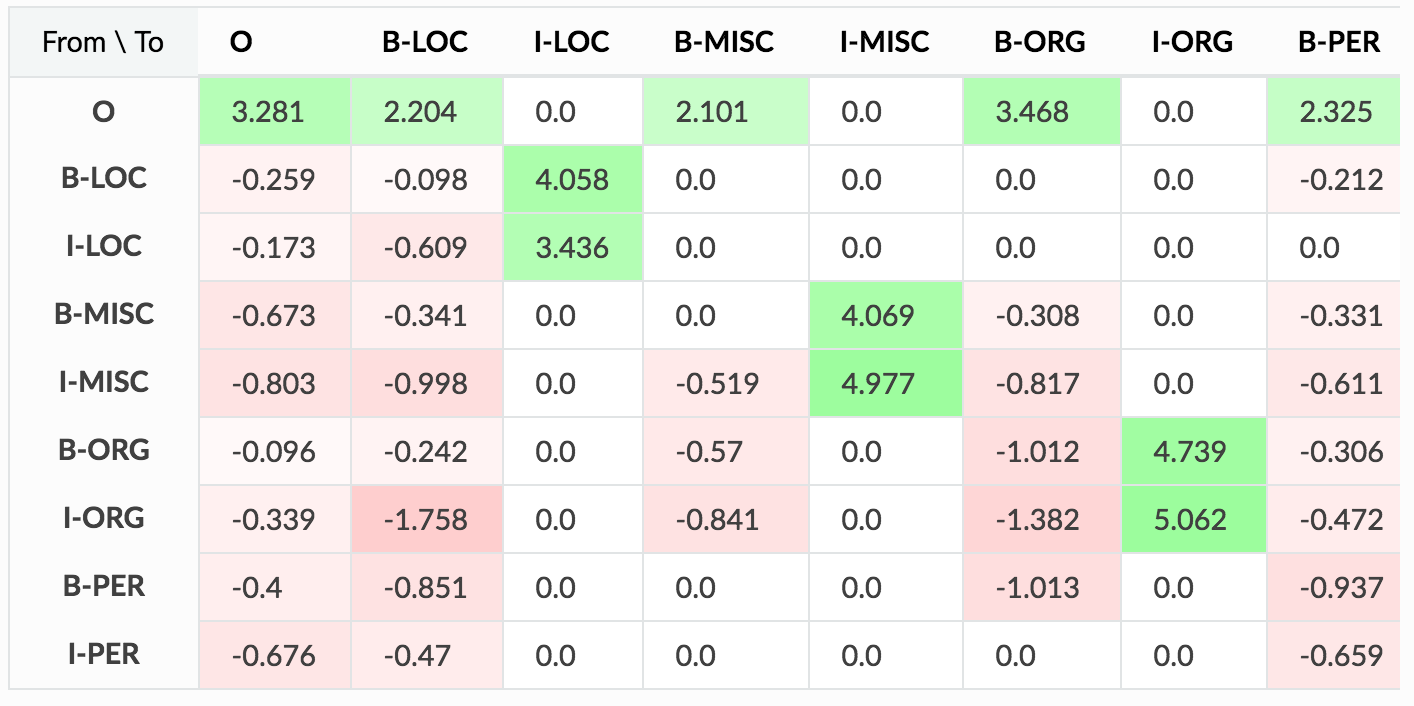

Transition matrix

\(\textrm{T}\) is a matrix of transition scores such that \(\textrm{P}_{i,j}\) represents the score of a transition from the tag \(i\) to tag \(j\). Two extra tags are added, \(y_{0}\) and \(y_{n}\) are the start and end tags of a sentence, that we add to the set of possible tags, \(\textrm{T}\) is, therefore, a square matrix of size \(\textrm{k}+2\).

Score of a prediction

For a given sequence of predictions for a sequence of words \(x\):

\[\textrm{y} = (y_{1},y_{2},\dots,y_{n})\]

we can compute its score based on the emission and transition matrices:

\[\textrm{score}(y) = \sum_{i=0}^{n} \textrm{T}_{y_i,y_{i+1}} + \sum_{i=1}^{n} \textrm{P}_{i,y_i}\]

so the score of a sequence of predictions is, for each word, the sum of the transition from the currently assigned tag \(y_i\) to the next assigned tag \(y_{i+1}\) plus the probability given by the LSTM to the tag assigned for the current word \(i\).

Training: parameter estimation

During training, we assign a probability to each tag but maximizing the probability of the correct tag \(y\) sequence among all the other possible tag sequences.

This is modelled by applying a softmax over all the possible taggings \(y\):

\[\textrm{p(y|X)} = \frac{e^{score(X,y)}}{\sum\limits_{y' \in Y({x})} e^{score(X,y')}}\]

where \(Y(x)\) denotes the set of all possible label sequences for \(x\), this denominator is also known as the partition function. So, finding the best sequence is the equivalent of finding the sequence that maximizes \(\textrm{score(X,y)}\).

The loss can be defined as the negative log-likelihood of the current tagging \(y\):

\[\textrm{-log p}(y\textrm{|X)}\]

so, in simplifying the function above, the first step is to get rid of the fraction using log equivalences, and then get rid of the \(\textrm{log}\ e\) in the first term since they cancel each other out:

\[\textrm{-log p}(y\textrm{|X)} = -\ \textrm{score(X,y)} + \textrm{log} \sum\limits_{y' \in Y({x})} \textrm{exp}(\textrm{score(X,y')})\]

then the second term can be simplified by applying the log-space addition logadd, equivalence, i.e.: \(\oplus(a, b, c, d) = log(e^a+e^b+e^c+e^d)\):

\[\textrm{-log p}(y\textrm{|X)} = -\ \textrm{score(X,y)} + \underset{y' \in Y({x})}{\text{logadd}} (\textrm{score(X,y')})\]

then, replacing the \(\textrm{score}\) by it’s definition:

\[= - (\sum_{i=0}^{n} \textrm{T}_{y_i,y_{i+1}} + \sum_{i=1}^{n} \textrm{P}_{i,y_i}) + \underset{y' \in Y({x})}{\text{logadd}}(\sum_{i=0}^{n} \textrm{T}_{y'_i,y'_{i+1}} + \sum_{i=1}^{n} \textrm{P}_{i,y_i})\]

The first term is the score for the true data. Computing the second term might be computationally expensive since it requires summing over the \(k^{n}\) different sequences in \(Y(x)\), i.e., the set of all possible label sequences for \(x\). This computation can be solved using a variant of the Viterbi algorithm, the forward algorithm.

The gradients are then computed using back-propagation since the CRF is inside the neural network. Note that the transition scores in the matrix are randomly initialized - or can also be initialized based on some criteria, to speed up training - and will be updated automatically during your training process.

Inference: determining the most likely label sequence \(y\) given \(X\)

Decoding is to search for the single label sequence with the largest joint probability conditioned on the input sequence:

\[\underset{y}{\arg\max}\ \textrm{p(y|X;}\theta)\]

the parameters \(\theta\) correspond to the transition and emission matrices, basically the task is finding the best \(\hat{y}\) given the transition matrix \(\textrm{T}\) and the matrix \(\textrm{P}\) with scores for each tag for the individual word:

\[\textrm{score} = \sum_{i=0}^{n} \textrm{T}_{y_i,y_{i+1}} + \sum_{i=1}^{n} \textrm{P}_{i,y_i}\]

a linear-chain sequence CRF model, models only interactions between two successive labels, i.e bi-gram interactions, therefore one can find the sequence \(y\) maximizing the score function above by adopting the Viterbi algorithm (Rabiner, 1989).
